Paragon 2-piece Rotors Rear Pair 305mm x 11mm (12.01" x 0.43") - Honda Civic Type R FK8 / FL5

(No reviews yet) Write a Review
$700.00 Per Pair
Application:
17-21 Civic Type R FK8, 23+ CTR FL5
Part Number:
P2R.021.305.110.19650.01.03.01/02.R
Availability:
In Stock

Product Details

Show Less Show More

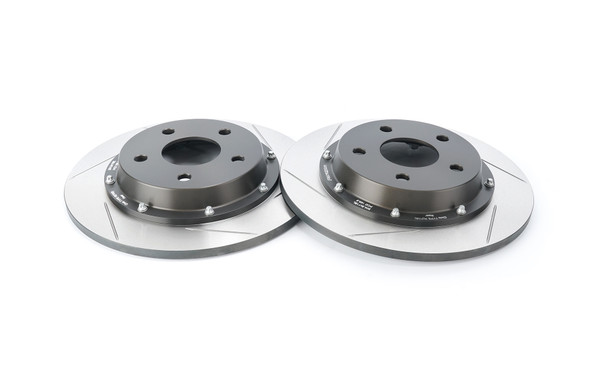

Paragon 2-piece Rotors (Rear Pair) for Honda Civic Type R FK8/FL5 / Integra Type S DE5

Paragon Performance 2-piece Rotor offers superior braking and cooling efficiency optimized for track and race applications. Features greater thermal capacity and increased resistance to cracking under harsh track condition.

Made of CM-250 special formulated high carbon alloy cast iron, it allows for an optimal bite, thermal characteristics, high-temperature strength and durability. Rotor rings are heat treated to release stress in the rotor to avoid deformation and vibration then turned by state-of-the-art CBN surface machining to ensure better break-in with new brake pads.

Vibration is reduced as the rotor lateral run-out is kept within 0.03mm and well-balanced: variations are kept within 2 grams. All rotors went through rigorous quality control procedures and inspections to ensure the rotors are fit for their purposes. A slotted rotor improves braking consistency by maintaining a clean contact surface and dissipate heat generated and gases released when the pads come into contact with the rotors. Slotted rotors have a superior advantage over blank rotors in wet or raining conditions by preventing water films to form between the brake pad and rotor surface. Weighing less than most O.E. rotors while maintaining proper thermal capacity, our 2-piece rotors improves overall handling by saving unsprung mass.



Aluminum hats are CNC machined from lightweight 6061-T6 aerospace grade aluminum for high strength and durability under extreme track conditions, then black hard coat/hard anodized to increase resistance to wear and corrosion. Mil-spec Type III anodized hats will not discolor under extreme heat, and are harder and more wear/scratch resistant. Unnecessary materials are taken out from the aluminum hats for maximum weight savings while maintaining proper structural integrity.
*Black hard coat and hard coat anodized hats are the same in terms of performance and durability.



  • Direct bolt-on without any modifications and designed to work flawlessly with OEM ABS and brake system while maintaining factory brake bias. Compatible with OEM brake pads or aftermarket pads with the same pad depth (D)

  • 2-piece design

  • Minimizing brake fade & judder during extended sessions

  • Weighs 8.8 lbs (4 kg) - save 3 lbs of unsprung weight per rotor vs. OEM

  • Rotor to hat mounting system: Fixed hat, non-floating (8 bolt)



Direct replacement of: OEM Honda part # 42510-TGH-A00 (42510TGHA00)



Includes:

  • One pair of Paragon Performance 305mm x 11mm (12.01” x 0.43”) 2-piece rotor assemblies with black hard coat/hard anodized 6061-T6 aerospace grade aluminum hats (assembled and ready to install)

  • Detailed installation manual



Application:

  • 2017-2021 Civic Type R FK8 (10th Gen)
  • 2023+ Civic Type R FL5 (11th Gen)
  • 2024+ Acura Integra Type S DE5



Part # (w/ black hard anodized hat): P2R.021.305.110.19650.01.03.01.R

Part # (w/ hard anodized hat): P2R.021.305.110.19650.01.03.02.R



Extra/replacement hardware is available for purchase. We recommend using new hardware when replacing rotors to ensure the rotor ring is attached to the aluminum hat properly. Please refer to our Rotor Assembly Instructions for torque specs and detailed instructions.



Interested in other Civic Type R FK8 (K20C) parts? Click HERE



Technical Specifications

Show Less Show More

Specifications:

Diameter: 305mm (12.01")

Thickness (new): 11mm (0.43")

Thickness (min.): 9mm (0.35")

Type: 2-piece non-floating

Face Pattern: Slotted

Vented / Solid: Solid

Number of Vanes: N/A

Hat Material: 6061-T6 aluminum

Friction Ring Material: CM-250 high carbon alloy cast iron

Rotor Finish: CBN turned

Weight (per rotor): 8.8 lbs (4 kg)



Cross Reference:

OEM Honda  42510-TGH-A00

Brembo  08.D713.11

EBC  USR2163/D2163/SG2163/GD2163

Centric/StopTech  120.40101/121.40101/320.40101

Girodisc  A2-166

DBA  3701E / DBA43701S

Dixcel  3355126
