Paragon 390x34mm Replacement Rotors for BMW M4 GT4 - Front Pair

(No reviews yet) Write a Review
$725.00 Per Pair
Application:
BMW M4 GT4
Part Number:
PRK.046.390.340.24510.15.01.F
Availability:
In Stock

Product Details

Show Less Show More

Paragon 390x34mm Replacement Rotors for M4 GT4 - Front

These rotor rings (friction rings) are direct fit for the original equipped aluminum hats on M4 GT4. Sold in pairs.

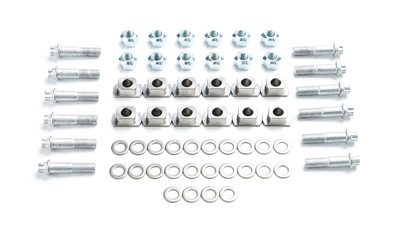

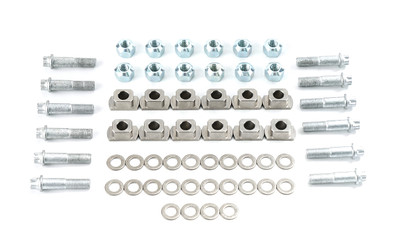

Comes with new rotor attachment hardware kits (enough for 2 rotors) and assembly instructions for a complete rebuild.



Paragon Performance Rotor Ring offers superior braking and cooling efficiency optimized for track and race applications. It features directional ventilation vanes to create suction, turbulence, and guides cool air through the rotor for improved heat dissipation and increased resistance to cracking under harsh track condition.

Made of CM-250 special formulated high carbon alloy cast iron, it allows for an optimal bite, thermal characteristics, high-temperature strength and durability. Rotor rings are heat treated to release stress in the rotor to avoid deformation and vibration then turned by state-of-the-art CBN surface machining to ensure better break-in with new brake pads.

Vibration is reduced as the rotor lateral run-out is kept within 0.03mm and well-balanced: variations are kept within 2 grams. All rotor rings went through rigorous quality control procedures and inspections to ensure the rotor rings are fit for their purposes. The fully floating 2-piece design allows thermal expansion of the rotor while minimizing deformation and ensuring the rotor is self-centered with the pads. A slotted rotor improves braking consistency by maintaining a clean contact surface and dissipate heat generated and gases released when the pads come into contact with the rotors. Slotted rotors have a superior advantage over blank rotors in wet or raining conditions by preventing water films to form between the brake pad and rotor surface. Optimized the balance between mass and thermal capacity, our rotors improves overall handling by saving unsprung weight.



  • Directional ventilation vanes for optimal cooling performance and increased resistance to cracking. Increased cooling efficiency for extreme race conditions

  • Fully-floating 2-piece design

  • Minimizing brake fade & judder during extended sessions

  • Rotor size: 390mm x 34mm
  • Radial depth (D): 62mm
  • Sprint version
  • Rotor to hat mounting system: T-Bobbbin (Short) - 12-bolt



Fits:

  • M4 GT4 front

*Replacement aluminum hats available



Paragon part number: PRK.046.390.340.24510.15.01.F



Cross Reference:

  • BMW 34108419741 / 34108419742



Please refer to our Rotor Assembly Instructions for torque specs and detailed instructions.

Technical Specifications

Show Less Show More

Specifications:

Diameter: 390mm (15.35")

Thickness (new): 34mm (1.34")

Thickness (min.): 32mm (1.26")

Radial depth (D): 62mm

Type: 2-piece floating

Face Pattern: Slotted

Vented / Solid: Directional ventilated

Number of Vanes: 48

Air Vane Gap: 19.3mm (sprint verion)

Friction Ring Material: CM-250 high carbon alloy cast iron

Rotor Finish: CBN turned



Cross Reference:

BMW  34108419741 / 34108419742
