Paragon 2-piece Rotors Rear Pair 350mm x 20mm (13.78" x 0.79") - Infiniti Q60 14-16 (CV36)

(No reviews yet) Write a Review
$950.00 Per Pair
Application:
2014-2016 Infiniti Q60 (CV36)
Part Number:
P2R.023.350.200.21500.08.01.01/02.R
Availability:
In Stock

Product Details

Show Less Show More

Paragon 2-piece Rotors (Rear Pair) for 2014-2016 Infiniti Q60 (CV36)

Paragon Performance 2-piece Rotor offers superior braking and cooling efficiency optimized for track and race applications. It features directional ventilation vanes to create suction, turbulence, and guides cool air through the rotor for improved heat dissipation and increased resistance to cracking under harsh track condition.

Made of CM-250 special formulated high carbon alloy cast iron, it allows for an optimal bite, thermal characteristics, high-temperature strength and durability. Rotor rings are heat treated to release stress in the rotor to avoid deformation and vibration then turned by state-of-the-art CBN surface machining to ensure better break-in with new brake pads.

Vibration is reduced as the rotor lateral run-out is kept within 0.03mm and well-balanced: variations are kept within 2 grams. All rotors went through rigorous quality control procedures and inspections to ensure the rotors are fit for their purposes. The floating 2-piece design allows thermal expansion of the rotor while minimizing deformation and ensuring the rotor is self-centered with the pads. A slotted rotor improves braking consistency by maintaining a clean contact surface and dissipate heat generated and gases released when the pads come into contact with the rotors. Slotted rotors have a superior advantage over blank rotors in wet or raining conditions by preventing water films to form between the brake pad and rotor surface. Weighing less than most O.E. rotors while maintaining proper thermal capacity, our 2-piece rotors improves overall handling by saving unsprung mass.

Aluminum hats are CNC machined from lightweight 6061-T6 aerospace grade aluminum for high strength and durability under extreme track conditions, then black hard coat/hard anodized to increase resistance to wear and corrosion. Mil-spec Type III anodized hats will not discolor under extreme heat, and are harder and more wear/scratch resistant. Unnecessary materials are taken out from the aluminum hats for maximum weight savings while maintaining proper structural integrity. Iron sleeves are integrated into the center hats to allow the use of OEM e-brake.

*Black hard coat and hard coat anodized hats are the same in terms of performance and durability.



  • Direct bolt-on without any modifications and designed to work flawlessly with OEM ABS and brake system while maintaining factory brake bias. Compatible with OEM brake pads or aftermarket pads with the same pad depth (D)

  • Directional ventilation vanes for optimal cooling performance, runs up to 30% cooler than O.E. rotors and increase cooling efficiency by up to 30%

  • Floating 2-piece design

  • Minimizing brake fade & judder during extended sessions

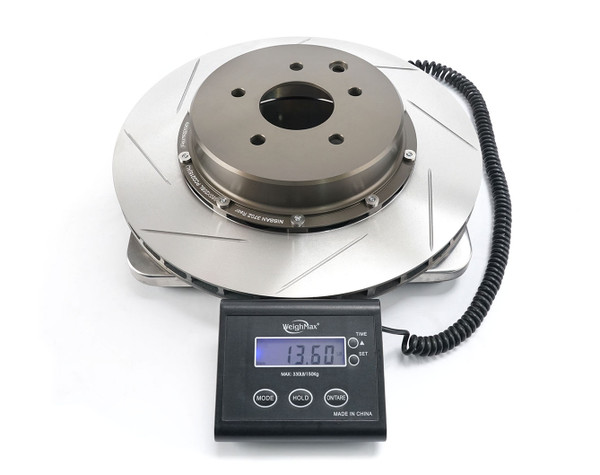

  • Weighs 13.6 lbs (6.2 kg)
  • Rotor to hat mounting system: D-Bobbin (short) - 10 bolt



Fits 2014-2016 Q60 (CV36) with OEM Akebono Sport Brakes

***DOES NOT fit 2017+ Q60 (CV37)***



Direct replacement of: OEM Infiniti part # 43206-JL00A



Includes:

  • One pair of Paragon Performance 350mm x 20mm (13.78” x 0.79”) 2-piece rotor assemblies with black hard coat/hard anodized center hats, stainless steel bobbins, and anti-rattle clips (assembled and ready to install)

  • Detailed installation manual



Part # (w/ black hard anodized hat): P2R.023.350.200.21500.08.01.01.R

Part # (w/ hard anodized hat): P2R.023.350.200.21500.08.01.02.R



Extra/replacement hardware is available for purchase. We recommend using new hardware when replacing rotors to ensure the rotor ring is attached to the hat properly. Please refer to our Rotor Assembly Instructions for torque specs and detailed instructions.



Technical Specifications

Show Less Show More

Specifications:

Diameter: 350mm (13.78")

Thickness (new): 20mm (0.79")

Thickness (min.): 18mm (0.71")

Type: 2-piece floating

Face Pattern: Slotted

Vented / Solid: Directional ventilated

Number of Vanes: 48

Hat Material: 6061-T6 Aluminum w/ integrated iron sleeve for e-brake

Friction Ring Material: CM-250 high carbon alloy cast iron

Rotor Finish: CBN turned

Weight (per rotor): 13.6 lbs (6.2 kg)



Cross Reference:

OEM Nissan/Infiniti  43206-JL00A

Brembo  09.D690.11

EBC  GD7513 / D7513

Centric/StopTech  120.42101 / 121.42101

DBA  2315 / 42315S

Project Mu  SCRN019
