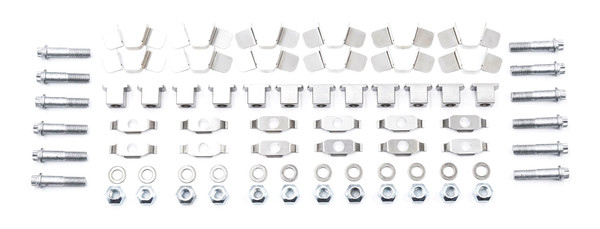

T-Bobbin (A), Rotor Attachment Complete Hardware Kit

T-Bobbin (A) rotor attachment complete hardware kit for floating 2-piece rotors

• Corrosion resistant, allows secure mounting, and smooth expansion and contraction throughout heat cycles
• This complete kit includes enough hardware for two rotors.

-Includes:

• 1/4 UNF aerospace grade Geomet coated bolts
• Locking nuts
• McLaren Spring Clips
• "U" clips
• T-Bobbins (A)


-Assemble torque specs: 10.5 lbf-ft / 14 Nm

Replacement of Alcon "Bobbin drive system with bolt" hardware

We recommend using new hardware every time when replacing rotor rings. If there is no visible wear, bobbins and spring clips can be reused. A bolt kit that includes bolts, locking nuts, and washers is available for purchase.

Part Number: PRH.TA.8/10/12.CK
